Commercial Panels

The commercial family of panels performs superbly on roof slopes as low as 1/12. The 26 gauge panels can span up to 4, and the heavier 24 gauge panels can span up to 5.

PBR

The PBR Panel is used mostly for steel-frame buildings, but can also be used on wood-frame buildings.

The PBR Panel is engineered and designed for maximum structural stability.

For excellent strength and leak resistance, the PBR Panel has full, 1-1/4 high major ribs every 12 which are 1 wide at the top and over 3 wide at the base.

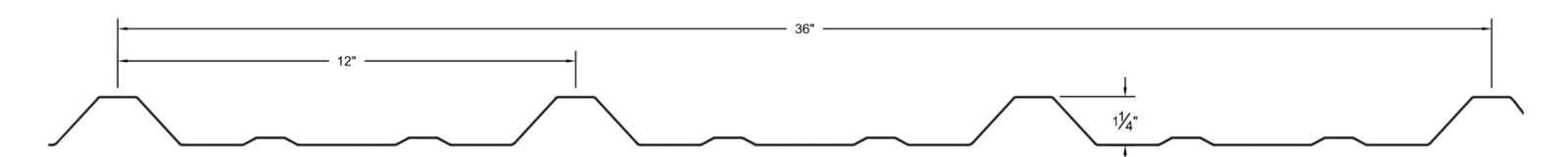

PBR Panel Profile

The PBR panel has a purlin-bearing-leg approximately 1 long at the underlap that rests on the purlin for extra support.

Sealant tape and stitch screws are recommended for improved leak protection.

PBR Panel Features:

26 Gauge
Coverage: 36
Rib Spacing: 12
Rib Height: 1-1/4
Substrate: AZ-50 Galvalume
Available in 11 energy-efficient colors
Made to custom lengths

Also available in 24 Gauge Bright White and Galvalume.

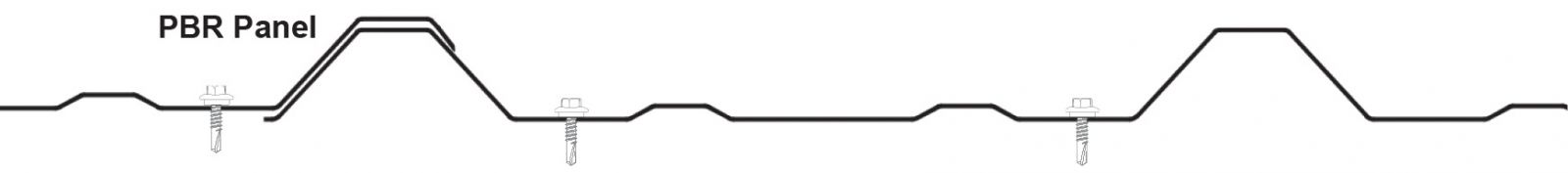

PBR Panel Screw Pattern

A Panel

For an architecturally attractive look, try our A Panel on your side walls and interior liner. The A Panel is practically identical to PBR panel but in reverse. The paint is on the opposite side and is meant to be installed upside-down, relatively speaking.

A Panel Features:

26 Gauge

Coverage: 36
Rib Spacing: 12
Rib Height: 1-1/4
Substrate: AZ-50 Galvalume
Available in 11 energy-efficient colors
Made to custom lengths

Panel Textured

The R Panel is identical to the PBR Panel but without the purlin-bearing-leg. Because of that, we only recommend the R Panel for sidewall applications and not for the roof.

The R panel comes in 9 glare-resistant textured colors with 40-year warranties.
